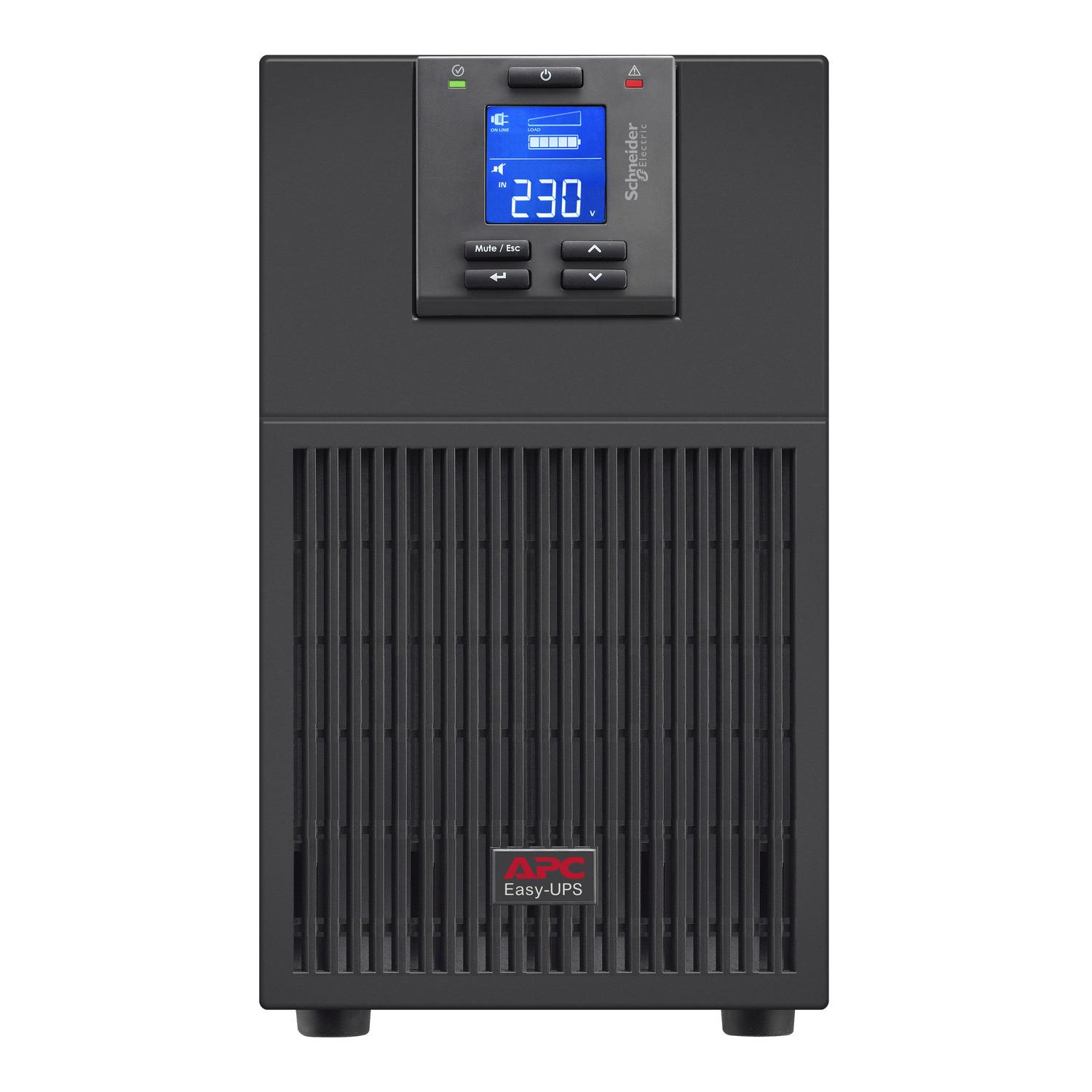

APC Easy UPS On-Line SRV3KI 3000VA, 2400W, Tower, LCD Display, 230V, 6 IEC C13 & 1 IEC C19 Outlets, Double-Conversion, Intelligent Card Slot

The APC Easy UPS On-Line SRV3KI is a high-quality, double-conversion online UPS designed for essential power protection needs in environments with unstable power conditions. Manufactured by APC by Schneider Electric, this UPS ensures uninterrupted power supply for critical IT equipment, networking devices, and sensitive electronics. With its pure sine wave output, intelligent battery management, and advanced LCD interface, the SRV3KI delivers superior reliability and performance.

Why Choose APC Easy UPS SRV3KI?

Power outages and voltage fluctuations can cause data loss, hardware damage, and operational downtime. The SRV3KI addresses these challenges with true online double-conversion technology, internal bypass, and intelligent temperature-compensated charging. It is ideal for small businesses, network closets, and edge computing environments that demand consistent, clean power.

Core Features

• 3000VA / 2400W Capacity: Supports essential IT loads and networking devices.
• Double-Conversion Online: Provides the highest level of power conditioning.
• LCD Display: Real-time monitoring of UPS status and alarms.
• Intelligent Card Slot: Enables advanced management options.
• Compact Tower Design: Saves space while delivering robust protection.

Performance & Reliability

The SRV3KI uses sealed lead-acid batteries with a life expectancy of 3–5 years. It offers internal automatic and manual bypass, ensuring continuous operation during maintenance. With an efficiency of 88% at full load, it reduces energy costs while maintaining reliability.

Applications

• Small Business Servers: Maintain uptime for critical applications.
• Network Infrastructure: Protect routers, switches, and firewalls.
• Healthcare & Finance: Ensure continuity for sensitive systems.

Safety & Compliance

Certified under CE, UKCA, and IEC standards, the SRV3KI meets global safety requirements. It includes audible alarms, LCD indicators, and surge protection for enhanced security.

Energy Efficiency & Sustainability

APC’s Green Premium™ label guarantees compliance with environmental standards and optimized energy performance.

Technical Specifications

• Model: SRV3KI
• Capacity: 3000VA / 2400W
• Topology: Double-Conversion Online
• Input Voltage: 230V AC
• Output Voltage: 230V AC (Configurable 220/230/240V)

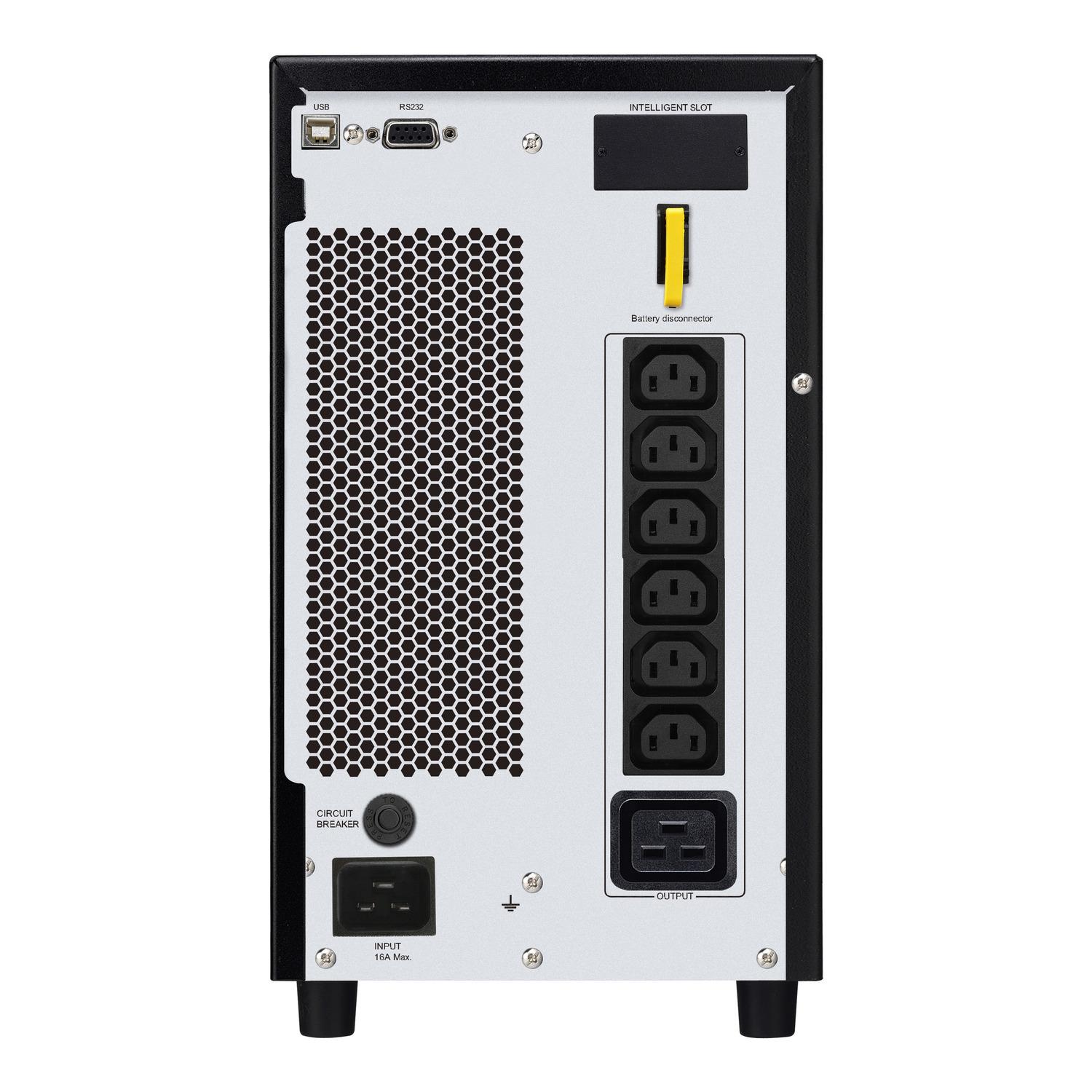

• Output Connections: 6 IEC 60320 C13 + 1 IEC 60320 C19
• Input Connection: IEC 60320 C20
• Waveform: Pure Sine Wave
• Efficiency: 88% at Full Load
• Frequency: 50/60Hz Auto-Sensing
• Bypass: Internal Automatic & Manual
• Battery Type: Sealed Lead-Acid (VRLA)
• Battery Voltage: 72V DC
• Recharge Time: 4 Hours
• Battery Life: 3–5 Years
• Replacement Battery: APCRBCV205
• Surge Energy Rating: 600 Joules
• Control Panel: Multifunction LCD Status Console
• Interface Ports: USB, RS-232
• Dimensions: 336mm (H) × 190mm (W) × 425mm (D)
• Weight: 26.8 kg
• Operating Temp: 0–40°C
• Humidity: 0–95% RH Non-Condensing
• Noise Level: 50 dBA
• Protection Class: IP20
