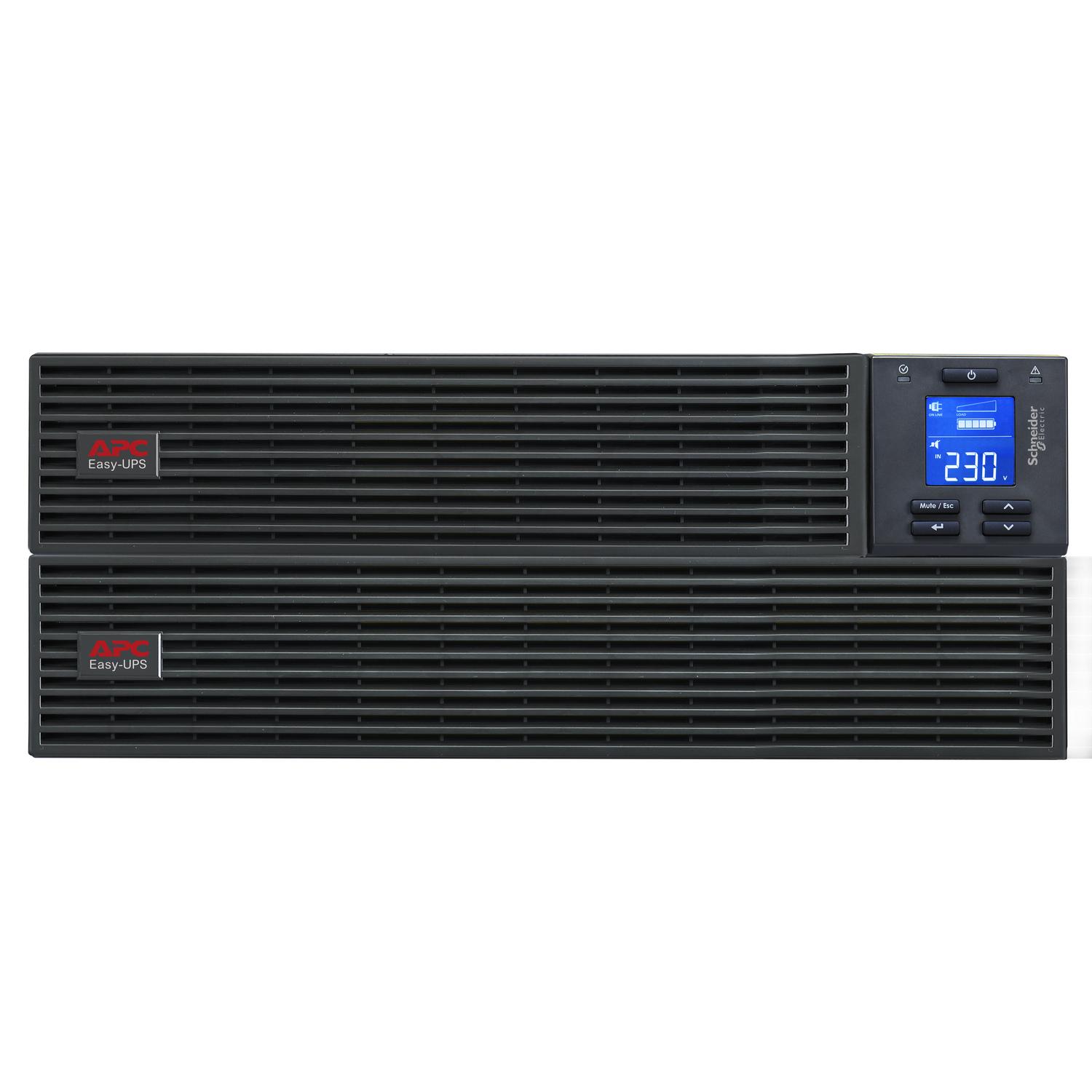

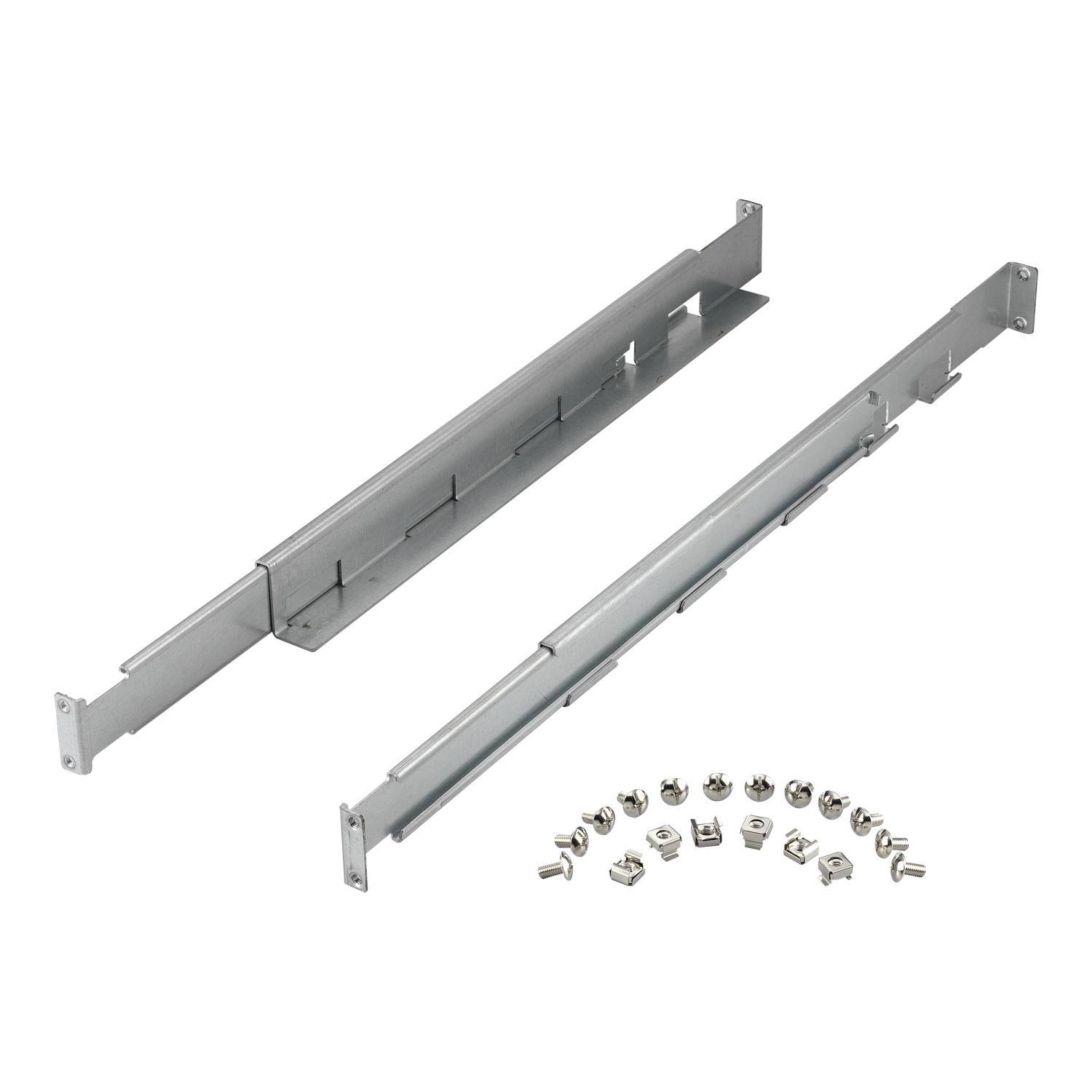

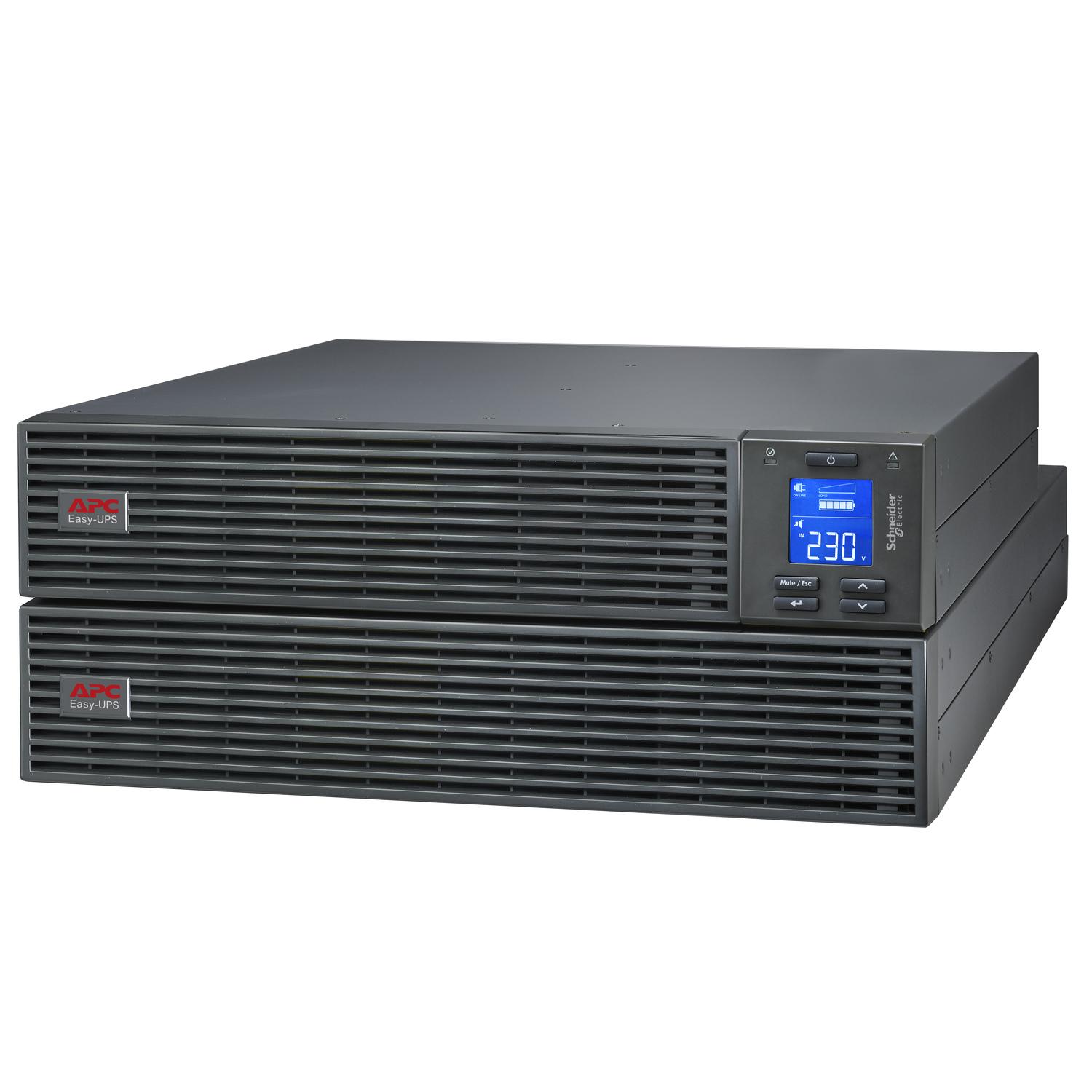

APC Easy UPS On-Line SRV3KRILRK 3000VA, 2400W, Rackmount 4U, LCD Display, Extended Runtime, Rail Kit, 6 IEC C13 & 1 IEC C19 Outlets, 230V, Double-Conversion

The APC Easy UPS On-Line SRV3KRILRK is a high-performance, double-conversion online UPS designed for critical IT environments, network infrastructure, and sensitive electronic equipment. Manufactured by APC by Schneider Electric, this rackmount UPS delivers pure sine wave output and zero transfer time, ensuring uninterrupted power even in the most unstable conditions. With extended runtime capability and rail kit included, it is ideal for data centers and enterprise setups.

Why Choose APC Easy UPS SRV3KRILRK?

Power disruptions can cause data loss, hardware damage, and operational downtime. The SRV3KRILRK addresses these challenges with true online double-conversion technology, internal bypass, and intelligent battery management. It is ideal for servers, networking gear, and mission-critical systems that demand consistent, clean power.

Core Features

• 3000VA / 2400W Capacity: Supports essential IT loads and networking devices.
• Double-Conversion Online: Provides the highest level of power conditioning.
• Rackmount 4U Design: Space-saving for data centers and server rooms.
• LCD Display: Real-time monitoring of UPS status and alarms.
• Extended Runtime Support: Compatible with external battery packs for longer backup.

Performance & Reliability

The SRV3KRILRK uses sealed lead-acid batteries with a life expectancy of 3–5 years. It offers internal automatic and manual bypass, ensuring continuous operation during maintenance. With an efficiency of up to 90% at full load, it reduces energy costs while maintaining reliability.

Applications

• Data Centers & Server Rooms: Protect servers and storage systems.
• Network Infrastructure: Ensure uptime for switches, routers, and firewalls.
• Healthcare & Finance: Maintain continuity for critical applications.

Safety & Compliance

Certified under CE, UKCA, and RoHS, the SRV3KRILRK meets global safety standards. It includes audible alarms, LCD indicators, and surge protection for enhanced security.

Energy Efficiency & Sustainability

APC’s Green Premium™ label guarantees compliance with environmental standards and optimized energy performance.

Technical Specifications

• Model: SRV3KRILRK
• Capacity: 3000VA / 2400W
• Topology: Double-Conversion Online
• Input Voltage: 230V AC
• Output Voltage: 230V AC (Configurable 220/230/240V)

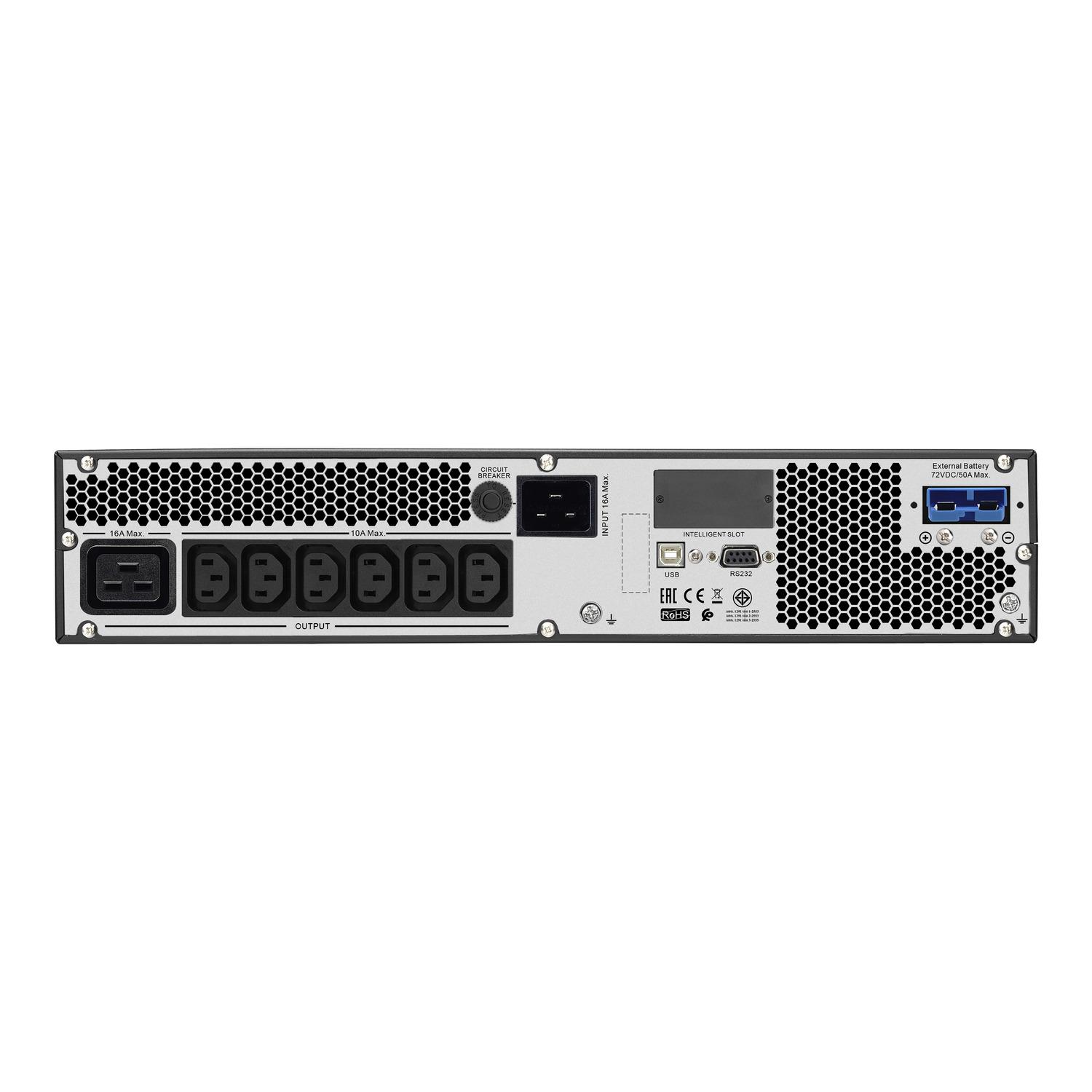

• Output Connections: 6 IEC 60320 C13 + 1 IEC 60320 C19
• Input Connection: IEC 60320 C20
• Rack Height: 4U
• Waveform: Pure Sine Wave
• Efficiency: Up to 90% at Full Load
• Frequency: 50/60Hz ±3Hz Sync to Mains
• Bypass: Internal Automatic & Manual
• Battery Type: Sealed Lead-Acid (VRLA)
• Battery Voltage: 72V DC
• Recharge Time: 5.5 Hours
• Battery Life: 3–5 Years

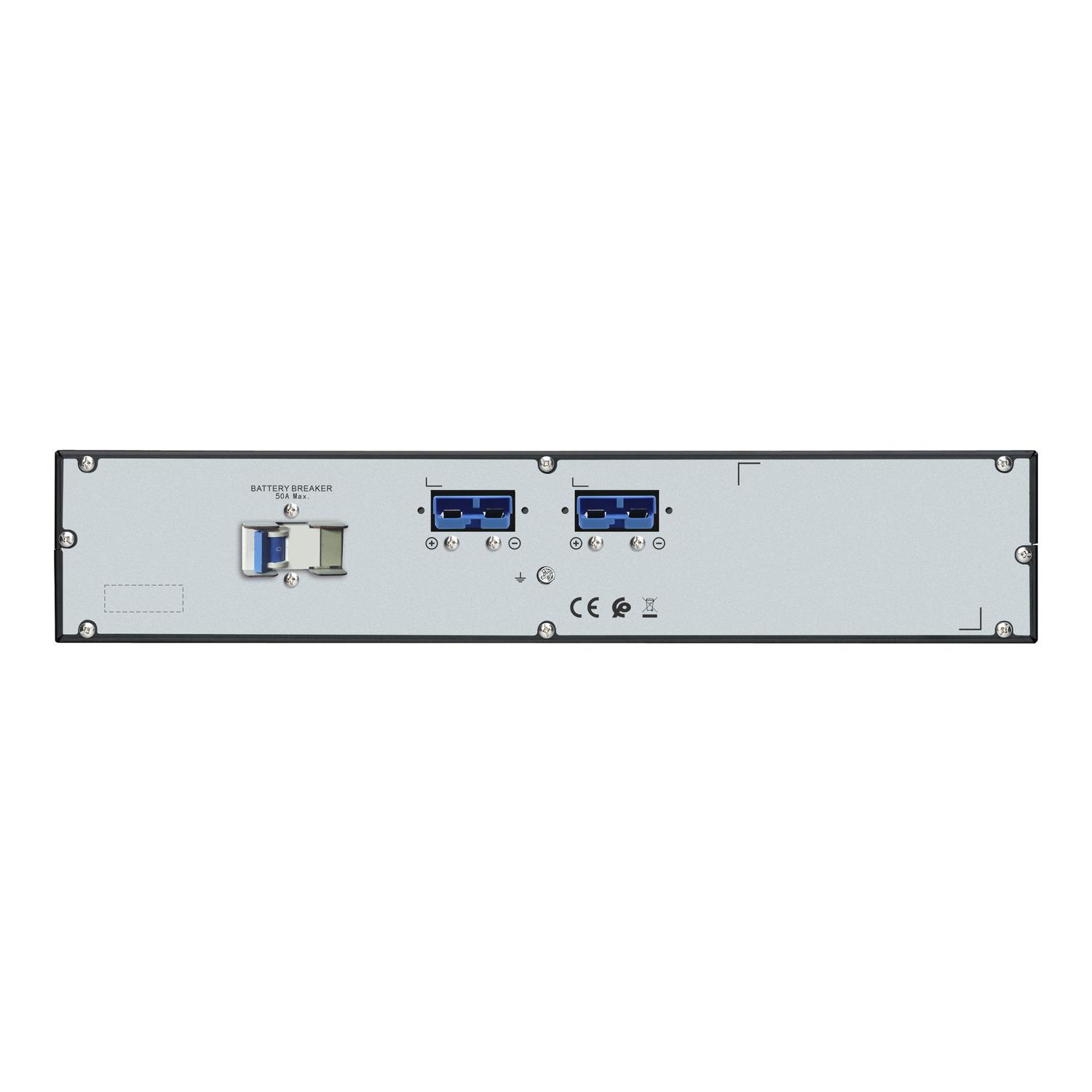

• Extended Runtime: Supports external battery packs (SRV72RLBP-9A)
• Surge Energy Rating: 600 Joules
• Control Panel: Multifunction LCD Status Console
• Interface Ports: USB, RS-232
• Dimensions: 172mm (H) × 437mm (W) × 632mm (D)
• Weight: 52 kg
• Operating Temp: 0–40°C
• Humidity: 0–95% RH Non-Condensing
• Noise Level: 50–53 dBA
• Protection Class: IP20
