The Epson EB-E20 is a versatile projector designed for classrooms, offices, and business environments. It combines 3LCD technology with XGA resolution to deliver bright, vivid images even in well-lit spaces. With 3400 lumens brightness, 15,000:1 contrast ratio, and lamp life up to 12,000 hours in Eco mode, this projector ensures exceptional performance and low maintenance costs.

Key Benefits

• Superior Image Quality: Epson’s 3LCD technology provides vibrant colors and sharp details.
• Flexible Installation: Lightweight and compact design for easy portability or ceiling mounting.
• Long-lasting Performance: UHE lamp offers up to 12,000 hours in Eco mode.
• Built-in Audio: Integrated 5W speaker for clear sound without external speakers.
• Connectivity Options: HDMI, VGA, USB, and RS-232C for seamless integration.

Ideal Applications

• Education: Perfect for classrooms and lecture halls.
• Business: Suitable for boardrooms, training sessions, and presentations.
• Home Entertainment: Large screen projection up to 350 inches.

Performance Highlights

• Brightness: 3,400 lumens for clear visibility in bright rooms.
• Resolution: XGA (1024 × 768) for sharp text and graphics.
• Contrast Ratio: 15,000:1 for deep blacks and vivid colors.
• Screen Size: Scalable from 30" to 350".
• Keystone Correction: ±30° vertical and horizontal for easy image alignment.

Energy Efficiency

Eco mode reduces power consumption and extends lamp life, making it an environmentally friendly choice.

User Experience

Features include an intuitive home screen, quick setup, and AV mute slide for instant image control. Split-screen functionality allows two sources to be displayed side by side.

Technical Specifications

• Projection System: 3LCD Technology
• Native Resolution: XGA (1024 × 768)
• Aspect Ratio: 4:3
• Brightness: 3,400 Lumens (Normal), 2,200 Lumens (Eco)
• Contrast Ratio: 15,000:1
• Lamp Type: UHE, 210W
• Lamp Life: 6,000h (Normal), 12,000h (Eco)
• Color Reproduction: Up to 1.07 billion colors
• Keystone Correction: ±30° Vertical & Horizontal
• Zoom: Digital, 1.0–1.35x
• Throw Ratio: 1.44–1.95:1
• Screen Size: 30"–350"

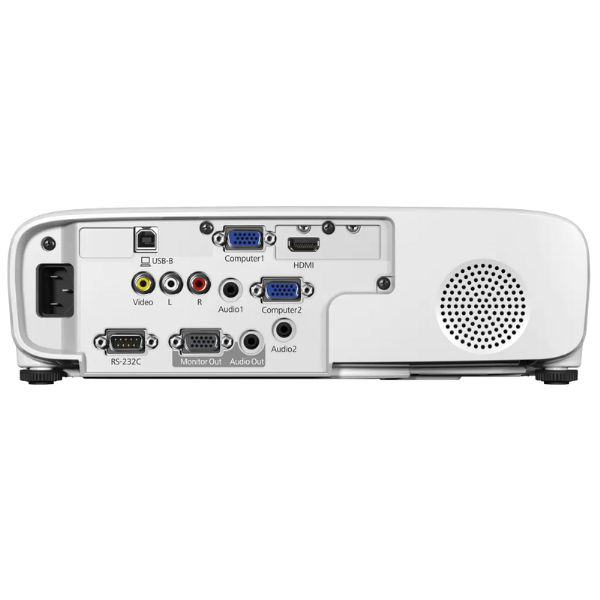

• Connectivity: HDMI, VGA (2 in, 1 out), USB 2.0 Type B, RS-232C, Composite, Audio in/out
• Speaker: Built-in 5W
• Power Consumption: 286W (Normal), 180W (Eco)
• Noise Level: 37 dB (Normal), 28 dB (Eco)
• Dimensions: 309 × 282 × 87 mm
• Weight: Approx. 2.7 kg
